2018 Hot selling Universal 100W Smart ac dc Automatic Laptop Adapter

FOB Reference Price:Get Latest Price
$27.00 - $36.00 / Pieces | 100 Piece/Pieces 100Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCPOWER
Model Number:
KT120W-1
Output Type:
AC
Connection:
Desktop
Certificate:
PSE/CE/CCC/GS/UL/VI/CB/GS/KC/RoHS
Product Name:
universal automatic laptop adapter
Color:
Black
Warranty:
3 years
LOAD CURRENT(Range):
0 - 8330mA
LINE REGULATION:
±1%
POWER RANGE:
100W
LOAD REGULATION:
±5%
HOLD-UP TIME:
10ms typ.@115Vac
WORKING TEMPERATURE:
0 ℃~40℃
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
white box ,color box or depend on client requirement
Port
shenzhen/HK
Lead Time :
after prepayment 25 days
Product Description

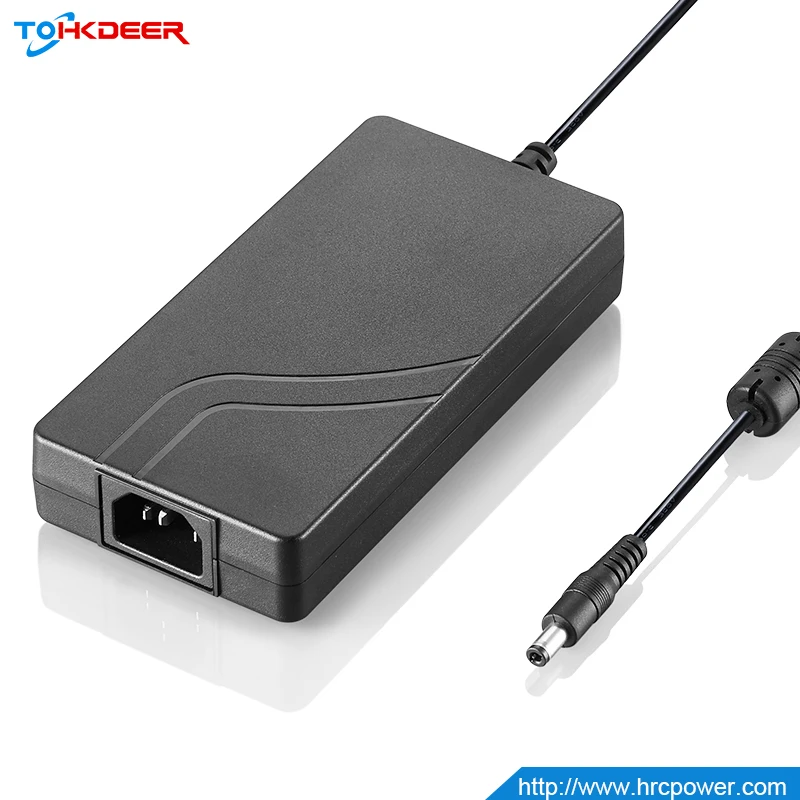

2018 Hot selling Universal 100W Smart ac dc Automatic Laptop Adapter

* Meets EN55022 Class B and CISPR/FCC Class B

* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet EISA 2007/DoE, EU ErP & CoC Version 5
* IEC60320-C14 Inlet, Class I power supply

Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE & NOISE (NOTE 2)
VOLTAGE ACCURACY (NOTE 1)
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
MAX OUTPUT POWER
9.0-15.0V
8330mA
350mV
±5%
±1%
±5%
100.0W
15.1-48.0V
7940mA
350mV
±5%
±1%
±5%
120.0W
Specification



INPUT :
Voltage:
90~264Vac
Frequency :
 47 to 63Hz

Input Current :
1.8A max.
Inrush Current :
































Cold Start @25℃ 120A max. @240Vac
Leakage Current :
 0.75mA max.


OUTPUT :
Hold-up Time :
10ms typ. @115Vac
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
Yes
Temperature Coefficient :
±0.05%/℃





GENERAL :
Hi-pot :
Input to output = 1.500VAC
Operating Temperature :
0 ~ 40℃
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024
Safety :
IEC60950, EN60950, UL60950, IEC60065, EN60065, IEC61558, EN61558
NOTE:
1. Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
3. Line regulation is measured from 100V to 240Vac full load.
4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load)

Mechanical Specification
Detailed Images
Related Prodcuts
Application
Certification
Company Information
Package and Shipment
Our Service


FAQ (Why choose us ?)
Q: Are you factory?
A :Yes,we are factory specialized in the adapters , R & D production and sales integration ,Price advantage!
Q: How about Warranty?
A : We offer 2 years warranty for our products, Quality is very important for long term business, that's what we do; Product 100% aging test, 100% automatic test instrument detection.
Q:How can I Secure my payment?
A: For Sample,you can pay by Paypal ; For mass production, Paypal ,T/T ,L/C is available, The agreement between each other
Q: What is shipping method?
A: It depends on your requirement, all available, such as DHL/UPS/FedEX, TNT, special line, Air Cargo, Sea Cargo, Post, etc. We'll try our best to help you save money;
Q: Sample cycle?
A: Sample is available, normally it takes 3~8 work days to prepare, and shipping samples to your country takes 3~7days by DHL
Q: How to work with us? And delivery?
A: We are very sincere to do business with you, normally, after order confirmed and deposit paid, mass production will be arranged within 1-4 weeks; we'll keep you posted about status of production.
