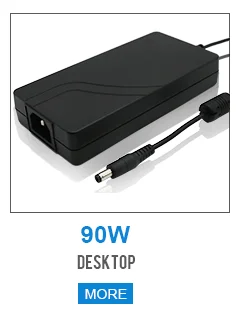

HRCPOWER Laptop AC Adapter 19v 4.74a 90w for asus laptop adapter

FOB Reference Price:Get Latest Price
$11.00 - $16.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCPOWER
Model Number:
KT90W-1
Output Type:
DC
Connection:
Desktop
Certificate:
PSE CE CCC GS UL VI CB GS KC RoHS
Product Name:
ac adapter laptop
Storage temperature:
-20 ℃~80℃
Warranty:
2 years
LOAD CURRENT(Range):
0 - 6670mA
POWER RANGE:
90W
altitude:
5000m
LOAD REGULATION:
±5%
life test:
100% aging
WORKING TEMPERATURE:
0 ℃~40℃
Supply Ability
Supply Ability:
500000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Mail box; Carton
Port
HK/Shenzhen
Lead Time :
1-4 working days for sample; 1-4 weeks for bulk order
Video Description
Product Description

HRCPOWER Laptop AC Adapter 19v 4.74a 90w for asus laptop adapter

* Meets EN55022 Class B and CISPR/FCC Class B

* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet EISA 2007/DoE, EU ErP & CoC Version 5
* IEC60320-C14 Inlet, Class I power supply

Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE & NOISE (NOTE 2)
VOLTAGE ACCURACY (NOTE 1)
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
MAX OUTPUT POWER
9.0-15.0V
6670mA
350mV
±5%
±1%
±5%
80.0W
15.1-48.0V
5960mA
350mV
±5%
±1%
±5%
90.0W
Specification


INPUT :
Voltage:
90~264Vac
Frequency :
 47 to 63Hz

Input Current :
1.5A max.
Inrush Current :
































Cold Start @25℃ 120A max. @240Vac
Leakage Current :
 0.75mA max.

OUTPUT :

Hold-up Time :
10ms typ. @115Vac
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
Yes
Temperature Coefficient :
±0.05%/℃





GENERAL :
Hi-pot :
Input to output = 1.500VAC
Operating Temperature :
0 ~ 40℃
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024
Safety :
IEC60950, EN60950, UL60950, IEC60065, EN60065, IEC61558, EN61558
NOTE:
1. Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
3. Line regulation is measured from 100V to 240Vac full load.
4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load)
