HRCpower universal power adapter 100~240vac 24vdc 1.25A 30w power supply

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    $5.40
  • 1000 - 4999 Pieces
    $5.30
  • >=5000 Pieces
    $5.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCPOWER
Model Number:
KT36W-1
Output Type:
DC
Connection:
Plug In
Certificate:
PSE/CE/CCC/GS/CE/CB/KC/VI
Product Name:
adapter output 24v 1.25a
Color:
Black
POWER RANGE:
30W
Warranty:
3 years
LOAD CURRENT(Range):
0 - 188,0mA
LINE REGULATION:
±1%
LOAD REGULATION:
±5%
HOLD-UP TIME:
10ms typ.@115Vac
WORKING TEMPERATURE:
0 ℃~40℃
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
white box ,color box or depend on client requirement
Port
shenzhen/HK
Lead Time :
after prepayment 25 days
Product Description

HRCpower universal power adapter 100~240vac 24vdc 1.25A 30w power supply

* Universal Input Range 90~264VAC
* Meets EN55022 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CEC & ErP Level VI
* AC inlet IEC320-C8

Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE & NOISE (NOTE 2)
VOLTAGE ACCURACY (NOTE 1)
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
MAX OUTPUT POWER
9.0-12.0V
3000mA
150mV
±5%
±1%
±5%
36.0W
12.1-19.0V
2970mA
150mV
±5%
±1%
±5%
36.0W
19.1-32.0V
1880mA
150mV
±5%
±1%
±5%
36.0W
32.1-48.0V
1120mA
150mV
±5%
±1%
±5%
36.0W
Specification



INPUT :
Voltage:
90~264Vac
Frequency :
 47 to 63Hz

Input Current :
1.0A max.
Inrush Current :
































Cold Start @25℃ 120A max. @240Vac
Leakage Current :
 0.25mA max.


OUTPUT :
Hold-up Time :
10ms typ. @115Vac
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
Yes
Temperature Coefficient :
±0.05%/℃





GENERAL :
Hi-pot :
Input to output = 3.000VAC
Operating Temperature :
0 ~ 40℃
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024
Safety :
IEC60950, EN60950, UL60950, IEC60065, EN60065, IEC61558, EN61558
NOTE:
1. Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
3. Line regulation is measured from 100V to 240Vac full load.
4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load

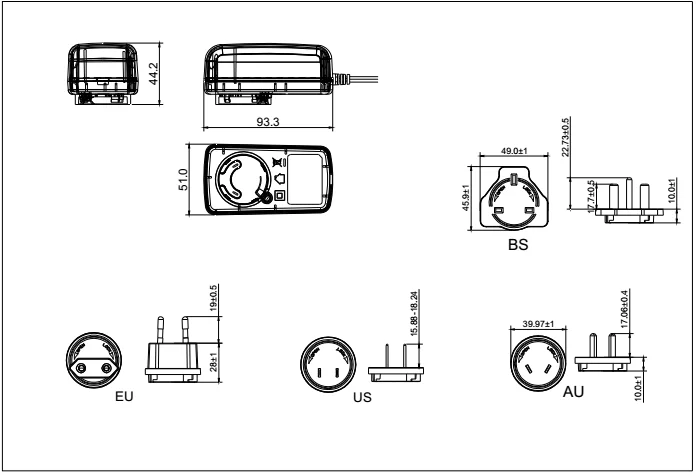

Mechanical Specification
Detail Images
Application
Related Prodcuts
Certification
Package and Shipment
Company Information
Our Service

FAQ (Why choose us ?)

Q: Are you factory?
A :Yes,we are factory specialized in the adapters , R & D production and sales integration ,Price advantage!

Q: How about Warranty?
A : We offer 2 years warranty for our products, Quality is very important for long term business, that's what we do; Product 100% aging test, 100% automatic test instrument detection.

Q:How can I Secure my payment?
A: For Sample,you can pay by Paypal ; For mass production, Paypal ,T/T ,L/C is available, The agreement between each other

 Q: What is shipping method?
A: It depends on your requirement, all available, such as DHL/UPS/FedEX, TNT, special line, Air Cargo, Sea Cargo, Post, etc. We'll try our best to help you save money;

Q: Sample cycle?
A: Sample is available, normally it takes 3~8 work days to prepare, and shipping samples to your country takes 3~7days by DHL

Q: How to work with us? And delivery?
A: We are very sincere to do business with you, normally, after order confirmed and deposit paid, mass production will be arranged within 1-4 weeks; we'll keep you posted about status of production.
