Best HRC Power Supply 12v Switch DC Power Supply 24vdc 100w

FOB Reference Price:Get Latest Price
$3.00 - $25.00 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCpower
Model Number:
KG-100W
Output Power:
101 - 200W
Output Type:
Single
Input Voltage:
100V-240V(88V-264V)
Output Voltage:
12V,24v
Output Frequency:
47-63Hz
Output Current:
2a,3a,5a,20a
Certificate:
CB, KC,TUV-MARK,cTUVus,CE,FCC,ROHS
Product Name:
pc power supply
Usage:
Electronic Products
Warranty:
3years
POWER RANGE:
100W
LOAD CURRENT(Range):
8.33A
LINE REGULATION:
±1%
LOAD REGULATION:
±1%
HOLD-UP TIME:
10ms/230VAC
WORKING TEMPERATURE:
capacitors up to 105 ℃
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
kraft box or depend on client requirement
Port
shenzhen/HK
Lead Time :
1-4 working days for sample order; 1-4 weeks for bulk order
Product Description

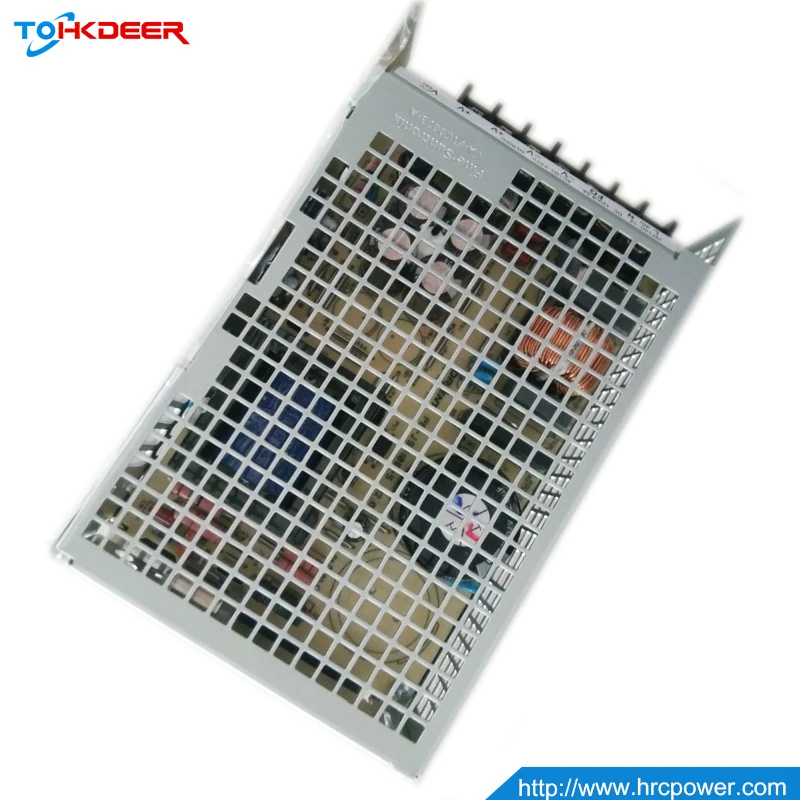

Best HRC Power Supply 12v Switch DC Power Supply 24vdc 100w

Super slim series 30mm height, high reliability
Electrolytic capacitors up to 105 ℃.Built in EMI filter
High efficiency,long life and high reliablity
Protections:short circuit/overload/over voltage/over temp
100% full load burn-in test
3 years warranty
129*97*30 mm

pc power supply
Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
R&N
Tol
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
Efficiency
5V
16A
80mV
2.00%
±1%
±1%
85%
12V
8.5A
120mV
1.00%
±1%
±1%
87%
15V
7.0A
120mA
1.00%
±1%
±1%
87%
24V
4.5A
120mA
1.00%
±1%
±1%
88%
36V
2.8A
200mA
1.00%
±1%
±1%
89%
48V
2.3A
200mA
1.00%
±1%
±1%
90%
Specification



INPUT :
Voltage:
88~264Vac
Frequency :
 47 to 63Hz

DC adugstment range:
  ±10%
AC inrush current:
45A/230V
Leakage Current :
  <1mA/240VAC


OUTPUT :
Hold-up Time :
10ms/230VAC Io=100%
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
115-150%
Temperature Coefficient :
Electrolytic capacitors up to 105 ℃





GENERAL :
Hi-pot :
Input to output = 1.500VAC
Operating Temperature :
 -20℃~+70℃(Refer to output derating curve)
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55015 EN61547 EN61000-3-2 EN61000-3-3
FCC PART 15 KN55015 KN61547
Safety :
IEC/EN61347-2-13:2014 IEC61347-1:2007
IEC61347-1:2007/AMD1:2010K61347
Detail Images
Package and Shipment
Certification
Company Information


About HRC power

Shenzhen HRCpower Technology Co., Ltd. was founded in 2010 , which is an OEM and ODM manufacturer of power adapter, power supply, battery charger, among other electronic components.

We aim to make high quality, energy-efficient power adapter, which are fully compliant with UL, Fcc, CE, TUV, CB, PSE, CCC, BSMI, GS and SAA. All products will be produced by 500 skillful employees and be designed by 4 R&D teams. We keep updating and improving our products to ensure that we will be your first choice.

For better serve our international customer, we set up Hongkong HRCpower Technology Co., Ltd. in 2013.

Most of our customers are located in the United States, Canada, United Kingdom, Germany, Spain, Australia, Brazil, South Africa, Singapore and Korea, and we seek to establish a long-term business relationships with our customers all over the world.
