First order 10% discount 24v power supply for computer

FOB Reference Price:Get Latest Price
$2.00 - $2.50 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCpower
Model Number:
HRC-75W
Output Power:
101 - 200W
Output Type:
Single
Input Voltage:
100V-240V(88V-264V)
Output Voltage:
24V
Output Frequency:
47-63Hz
Output Current:
3.12A
Certificate:
CB, KC,TUV-MARK,cTUVus,CE,FCC,ROHS
Product Name:
24v power supply
Usage:
Electronic Products
Warranty:
3years
LOAD CURRENT(Range):
3.12A
POWER RANGE:
75W
LINE REGULATION:
±1%
LOAD REGULATION:
±1%
HOLD-UP TIME:
10ms/230VAC
WORKING TEMPERATURE:
capacitors up to 105 ℃
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
kraft box or depend on client requirement
Port
shenzhen/HK
Lead Time :
1-4 working days for sample order; 1-4 weeks for bulk order
Product Description

First order 10% discount 24v power supply for computer

          24v power supply

Super slim series 30mm height, high reliability

Electrolytic capacitors up to 105 ℃.Built in EMI filter

High efficiency,long life and high reliablity

Protections:short circuit/overload/over voltage/over temp

100% full load burn-in test

3 years warranty

129*67*38



Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
R&N
Tol
Efficiency
3.3V
22.7A
80mV
2.00%
74%
5V
15
80mV
2.00%
78%
12V
6.0A
120mA
1.00%
83%
15V
5.0A
120mA
1.00%
84%
24V
3.2A
120mA
1.00%
85%
48V
1.6A
200mA
1.00%
86%
Specification



INPUT :
Voltage:
88~264Vac
Frequency :
 47 to 63Hz

DC adugstment range:
  ±10%
AC inrush current:
45A/230V
Leakage Current :
  <1mA/240VAC


OUTPUT :
Hold-up Time :
10ms/230VAC Io=100%
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
115-150%
Temperature Coefficient :
Electrolytic capacitors up to 105 ℃





GENERAL :
Hi-pot :
Input to output = 1.500VAC
Operating Temperature :
 -20℃~+70℃(Refer to output derating curve)
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55015 EN61547 EN61000-3-2 EN61000-3-3
FCC PART 15 KN55015 KN61547
Safety :
IEC/EN61347-2-13:2014 IEC61347-1:2007
IEC61347-1:2007/AMD1:2010K61347

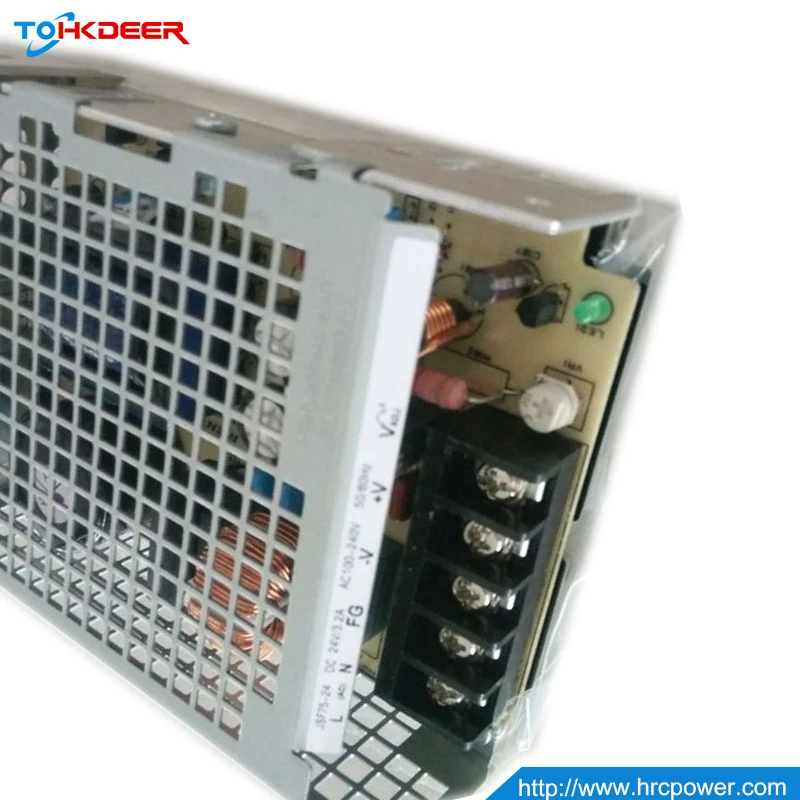

Detail Images
