HRCPOWER 16S 72V lithium ion battery management system bms for e-bike

FOB Reference Price:Get Latest Price
$20.00 - $45.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCPOWER
Model Number:
HRC-XK-006-17S40A
Number of Layers:
10-Layer
Base Material:
FR-4/aluminum/ceramic/cem-3/FR-1
Copper Thickness:
1oz
Board Thickness:
1.6mm
Min. Hole Size:
0.004"
Min. Line Width:
0.3mm/0.2mm
Min. Line Spacing:
0.10mm
Surface Finishing:
Immersion Gold
Product name:
lithium ion battery BMS
Application:
Electronics Device
Certificate:
ISO9001
PCB Item:
Engineering
PCB Assembly process:
SMT THT DIP
Solder Mask:
Green. White
Charging voltage:
72V
recharging current:
40A
Temperature range of Operating:
-20~45
humidity range of Save environment:
≤40%
Supply Ability
Supply Ability:
300000 Pack/Packs per Month
Packaging & Delivery
Packaging Details
Factory package or customized
Port
shenzhen
Lead Time :
3-8 days after received payment
Product Introduction

HRCPOWER 16S 72V lithium ion battery management system bms for e-bike


Application and features:

a. Applicable to 17 series 40AH and below lithium manganese oxide/lithium cobaltate/lithium ion/lithium polymer/ternary battery pack;
b. Perfect overcharge protection, over-discharge protection, over-current protection, short-circuit protection and disconnection protection;
c. The external protection adopts aluminum heat sink, which is shockproof, drop-proof, anti-impact and increase heat dissipation and increase the strength;
d. The main control IC adopts a highly integrated dedicated battery protection IC with reliable and stable protection functions, low self-loss and ESD protection.

Product Parameters
NO
Test items
Min
typical
Max
unit
1
Charging voltage
71.06
71.4
72
V
2
Charge MOS tube withstand voltage value


100(DC)
V
3
Discharge MOS tube withstand voltage value


100(DC)
V
4
recharging current

40
43
A
5
Continuous discharge current

40
43
A
6
Discharge overcurrent protection current (100A electronic load)
85
95
105
A
7
Discharge Overcurrent Protection Delay (Nebula Protection Board Tester)
300
470
600
mS
8
Single consumable current (3.30V)
15
23
33
uA
9
Single section overcharge detection voltage
4.21
4.25
4.29
V
10
Single section overcharge recovery voltage
4.05
4.15
4.2
V
11
Single section overcharge detection delay
0.5
1
2
S
12
Single section over discharge detection voltage
2.67
2.75
2.83
V
13
Single section over discharge recovery voltage
2.9
3
3.1
V
14
Single section over discharge detection delay
0.5
1
2
S
15
Short-circuit/over current protection recovery conditions
Short-circuit/overcurrent protection removes load automatically after recovery
16
Overcharge(overdischarge)recovery conditions
Discharge short-circuit/discharge over-current protection removes load automatically after recovery
17
Short circuit protection delay
500
1000
1800
uS
18
Protection circuit internal resistance

8
15
19
Maximum temperature rise of normal current

45
60
ºC
20
Discharge MOS protection temperature
65
70
75
ºC
21
temperature range of Operating
-20
25
45
ºC
22
temperature range of Save environment
20
25
30
ºC
23
humidity range of Save environment
≤40%

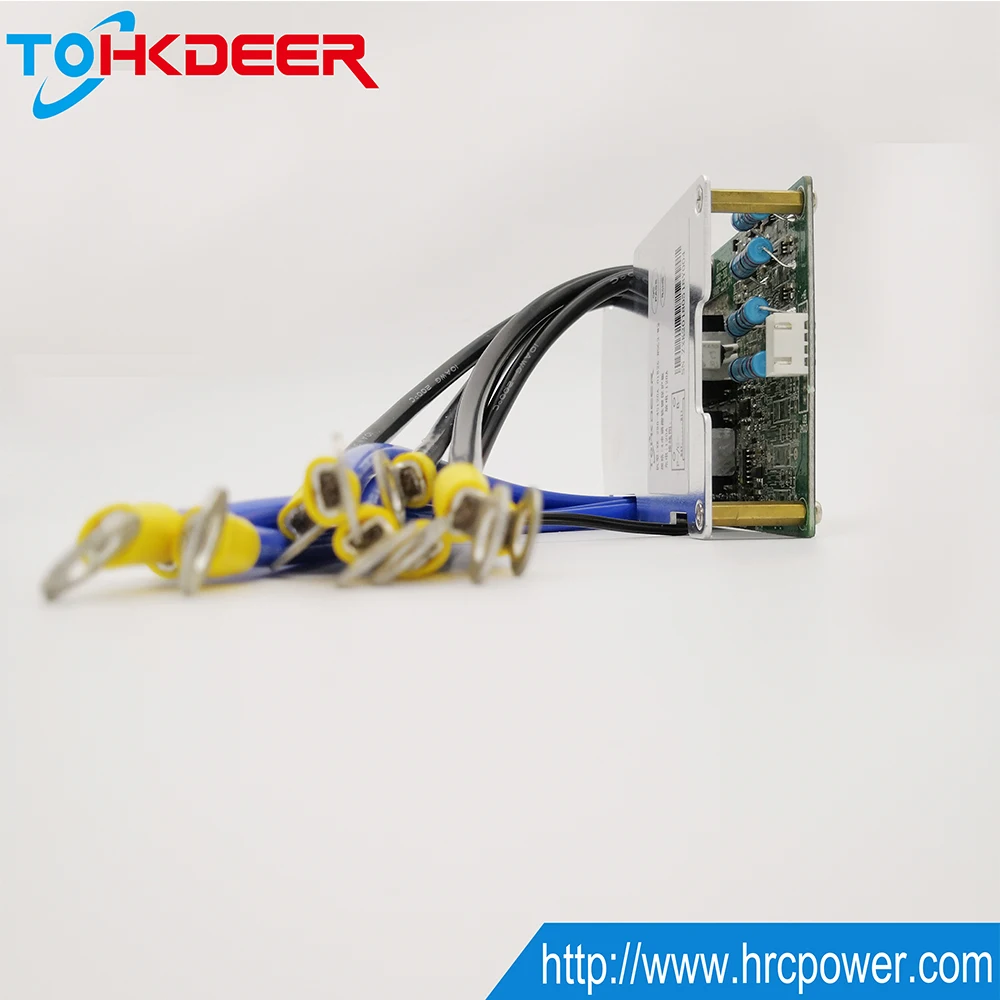

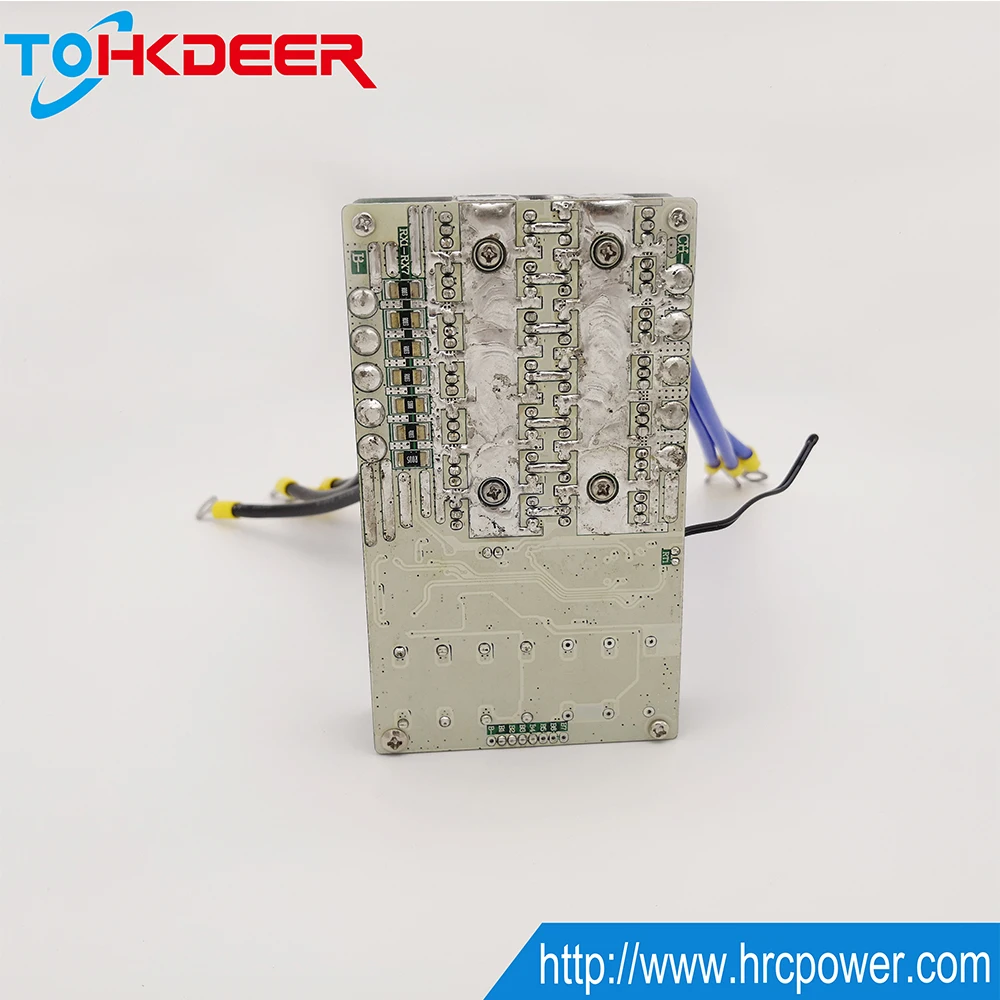

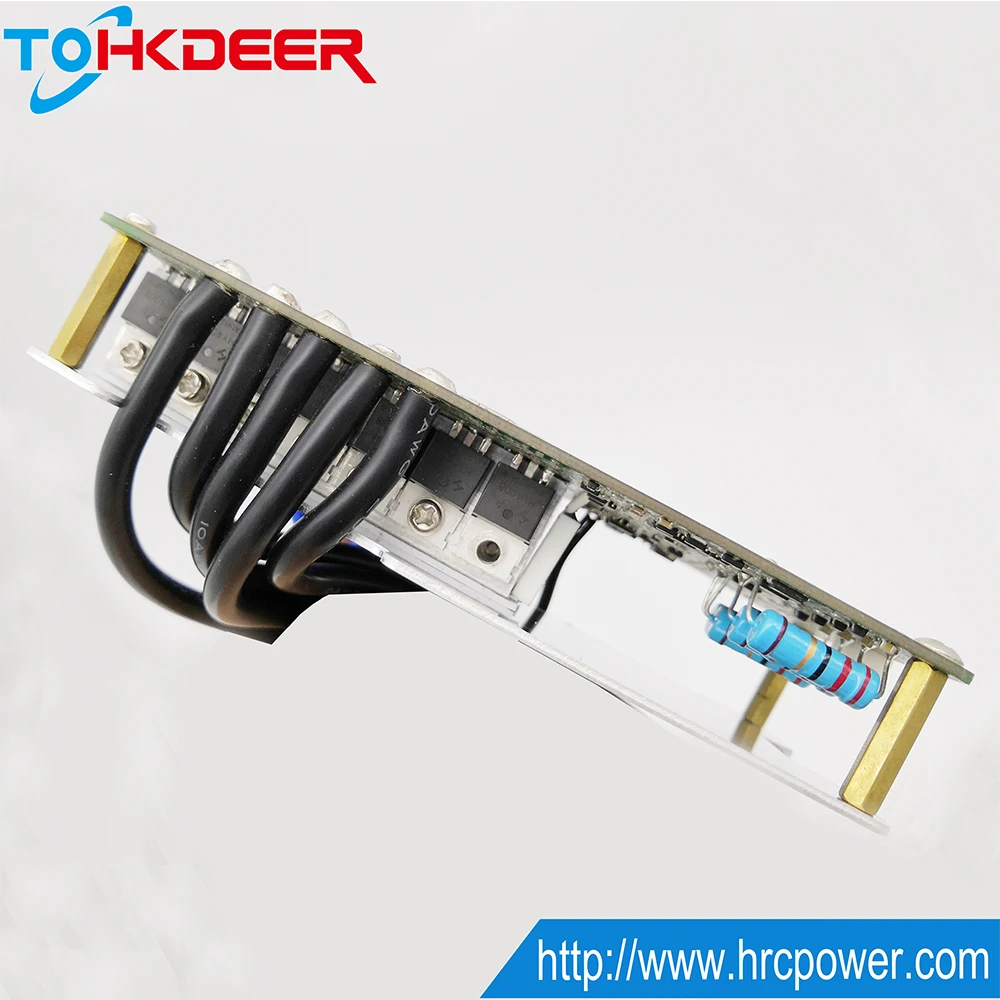

Product Details Show
