HRCPOWER Factory wholesale 10.5v 2a power adapter Desktop

FOB Reference Price:Get Latest Price
$0.50 - $5.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HRCPOWER
Model Number:
KT21W
Output Type:
DC
Connection:
Desktop
Product Name:
ac power adapter
Type:
Wall Plug
Output:
10.5V
Warranty:
2 Years
Usage:
Electronic Products
energy efficiency:
VI
working temperature:
0-40℃
Storage temperature:
-20-80℃
cooling:
natural convection
Altitude:
5000m
Supply Ability
Supply Ability:
3000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
PP bag, Whitle box; CTN; or customized package
Port
SHENZHEN
Lead Time :
1-4 days for sample; 1-4 weeks for bulk order
Product Description

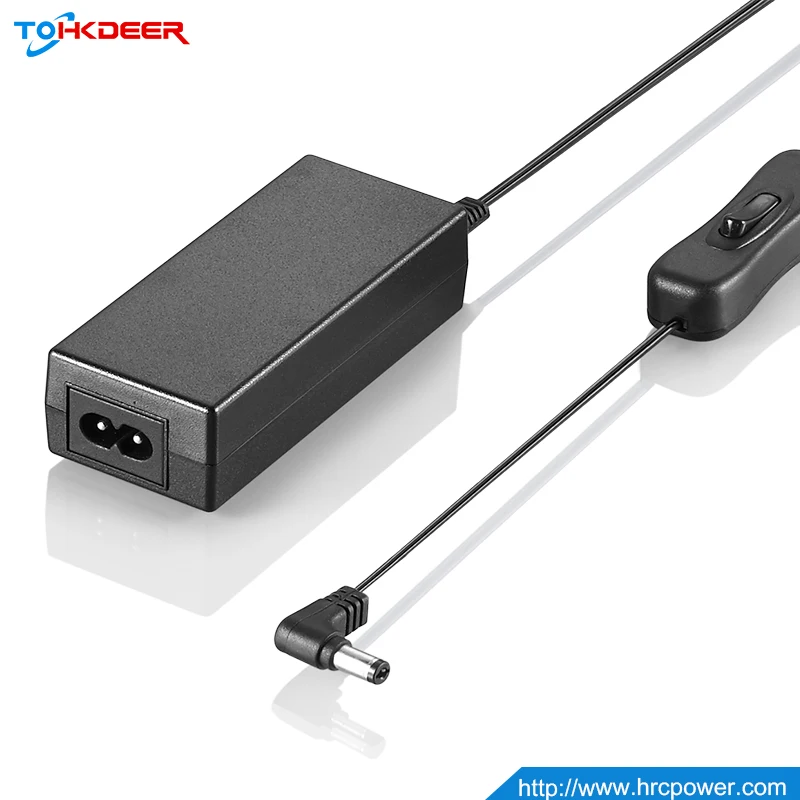

HRCPOWER Switching Desktop Power Adapter 19v 1.26a

* Universal Input Range 90~264VAC
* Meets EN55022 Class B and CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Voltage Protection
* Meet CEC & ErP Level VI
* AC inlet IEC320-C8

Typical Model List
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE & NOISE (NOTE 2)
VOLTAGE ACCURACY (NOTE 1)
LINE REGULATION (NOTE 3)
LOAD REGULATION (NOTE 4)
MAX OUTPUT POWER
4.0-5.0V
4000mA
150mV
±5%
±1%
±5%
20.0W
5.1-6.0V
3000mA
150mV
±5%
±1%
±5%
18.0W
7.0-12.0V
2000mA
150mV
±5%
±1%
±5%
24.0W
12.1-12.6V
1800mA
150mV
±5%
±1%
±5%
22.68W
12.7-15.0V
1500mA
150mV
±5%
±1%
±5%
22.5W
15.1-24.0V
1000mA
150mV
±5%
±1%
±5%
24.0W
Specification

INPUT :
Voltage:
90~264Vac
Frequency :
 47 to 63Hz

Input Current :
0.8A max.
Inrush Current :
































Cold Start @25℃ 120A max. @240Vac
Leakage Current :
 0.25mA max.


OUTPUT :
Hold-up Time :
10ms typ. @115Vac
Short Circuit Protection :
Continuous(Auto Recovery)
Over Voltage Protection :
Yes
Temperature Coefficient :
±0.05%/℃





GENERAL :
Hi-pot :
Input to output = 3.000VAC
Operating Temperature :
0 ~ 40℃
Storage Temperature :
 -20 ~ 80℃
Humidity :
85% RH max. Non condensing
Cooling :
Natural Convection
Switching Frequency :
50KHz Typical MTBF ….MIL-HDBK-217F, GB, at 25℃/115VAC….50Khrs min.
Altitude :
5000m

SAFETY AND EMC :
Emission and lmmunity :
EN55022 Class B, FCC Part 15 Class B EN61000-6-3,EN61000-3-2,EN61000-3-3, EN55024
Safety :
IEC60950, EN60950, UL60950, IEC60065, EN60065, IEC61558, EN61558
NOTE:
1. Voltage accuracy at 60% full load.
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & Noise measurement @20MHz BW.
3. Line regulation is measured from 100V to 240Vac full load.
4. Load regulation is measured from 60% to 100% full load and from 60% to 20% full load (60% +/- 40% full load)
